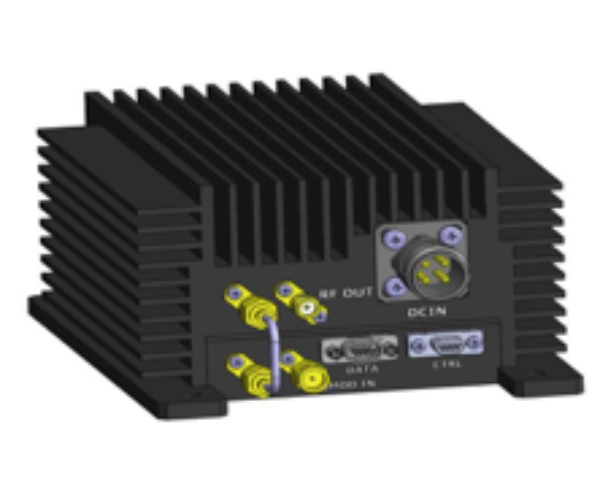

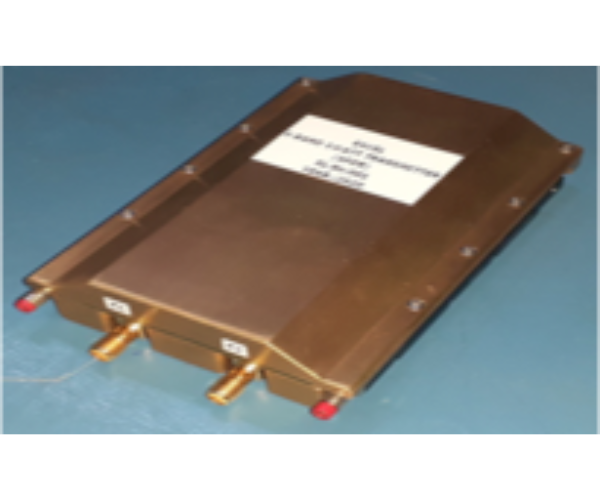

L-Band Data Transmitter -10W (1.43-1.53GHz)

Product Details

      Product Name        : L-Band Data Transmitter -10W (1.43-1.53GHz)

      Model Number       : SYS 22 050 00 040

      Overview                : Transmitter System

      Application             : Surface Air Missile

      Dimensions             : 150x110x66mm

       Technical Details   : As follows below

    Frequency Range  :  1430-1530MHz

    Frequency Tuning  :  Programmable

    Freq. Tuning Step Size  :  0.5MHz Steps programmable

    Carrier Freq. Stability  :  0.003%

    Signal Input  :  Analog, FM, PCM

    Power Output  :  10W(CW) Fixed

    Output Impedance  :  50Ω

    Protection  :  Indefinite RF open/Short circuit protection provided

    Modulation Type  :  PCM-FM, SOQPSK

   Input Impedance  :  10K Ω

   VSWR  :  Better Than 1.5:1

    Harmonics &

   Spurious Levels  :  <-60dBc

   I/P Signal Coupling  :  AC Coupling

   I/P Frequency B.W  :  Band Width 100Hz to 10MHz

Configuration Software   : a) Windows-based GUI with drivers that easily communicates and configure the Transmitter via serial  port/USB or Ethernet connection using a PC running the Windows 7/8 and Windows 10 operating system.

    b) Software shall be Capable to Configure, load, monitor and recall the settings loaded in transmitter via  Data link.
